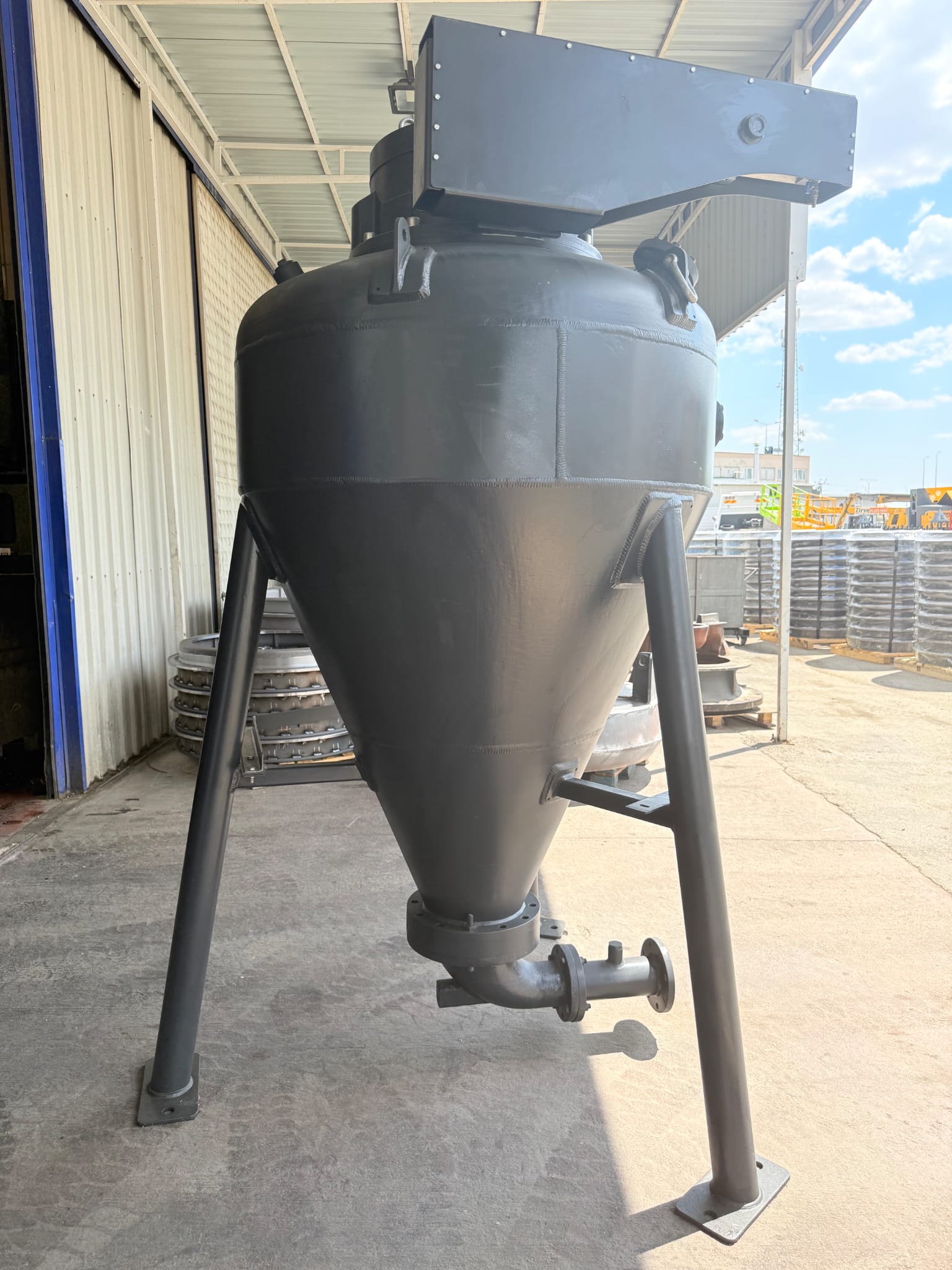

Pneumatic Conveying Systems: A Comparison of Dense-Phase and Dilute-Phase Systems
Pneumatic conveying systems, which enable the transfer of powders, granules, and bulk raw materials through pipelines using air or another carrier gas, are one of the fundamental components of raw material transfer in many industrial production facilities.
However, one of the most critical engineering decisions when selecting a pneumatic conveying system is this:
Should the product be conveyed in dense phase or dilute phase?
There is no single correct answer to this question.
The product to be conveyed—
- bulk density,
- particle size,
- abrasiveness,
- brittleness,
- moisture content,
- flow characteristics—
along with the process—
- capacity,
- conveyance distance,
- vertical height,
- operating mode,
- energy objectives,
- and maintenance expectations
must be evaluated together.
While dilute-phase systems provide more continuous and relatively simple conveying with high air velocities, dense-phase pneumatic conveying systems can operate with higher solid concentrations and lower product velocities.
This difference can directly affect not only capacity but also
pipe wear, product breakage, air consumption, filter size, and total operating costs
as well.
In this guide, we will compare dense-phase and dilute-phase pneumatic conveying systems from a technical perspective and examine which method may be more suitable for which process.
What Is the Fundamental Difference Between Dense-Phase and Dilute-Phase Systems?
In short:
Dilute-phase pneumatic conveying is a system in which the material is transported largely in suspension within a high-velocity air stream.
Dense-phase pneumatic conveying, on the other hand, is a system in which the material moves at higher solid concentrations and, generally, at much lower conveying speeds.
Independent bulk-solids engineering sources cite transport speeds on the order of 15–30 m/s for dilute-phase applications; for dense-phase systems, they indicate much lower values, such as inlet speeds of approximately 3–10 m/s depending on the application. However, these are not design recipes but general regime indicators. The actual speed must be determined based on material behavior and system geometry.
This difference creates the following chain:
Conveyance velocity → particle energy → impact on the pipe → wear / product breakage → maintenance and product quality
Therefore, the correct phase selection determines not only whether “the product is being conveyed,” but also at what cost and quality the product reaches the facility.
What Is Dilute-Phase Pneumatic Conveying?
Dilute-phase pneumatic conveying is referred to as Dilute Phase Pneumatic Conveying in English terminology.
In this method, a high-velocity airflow carries the particles by keeping them in suspension within the pipe.
The product concentration is lower compared to the dense phase, and more conveying air is used in the system.
A typical system may operate as follows:
Blower → air line → star feeder → conveying pipe → receiver / silo → filter
The material is introduced into the air stream via a rotary valve or another feeder and is transported to the destination.
Key Characteristics of Dilute-Phase Conveying
In general:
- higher air velocity,
- lower solid-to-air ratio,
- capability for continuous conveying,
- relatively simple equipment design,
- and broad product compatibility
are its defining features.
Jenike & Johanson define the dilute phase as a regime in which particles are transported in suspension within high-velocity, low-pressure air and note that it can be applied to a very wide range of materials.
What Is Dense-Phase Pneumatic Conveying?
Dense-phase pneumatic conveying is referred to as Dense Phase Pneumatic Conveying in English.
In this system, the goal is not to keep the entire product suspended in the air as independent particles.
The product can move through the system in various flow regimes, such as:
- plug,
- slug,
- dune,
- or a moving dense bed.
The system operates with a higher material-to-air ratio.
One of the most significant differences is the ability to reduce product velocity.
Macawber’s descriptions of dense-phase systems also emphasize that low velocity is used specifically to limit product damage and pipe wear, particularly with brittle and abrasive raw materials.
Comparison of Dense-Phase and Dilute-Phase Pneumatic Conveying
The table below shows the general characteristics of the two technologies.
Criterion Dilute Phase Dense Phase
Material concentration Lower Higher
Product velocity High Lower
Air requirement Relatively high May be relatively low
Operating pressure Generally low Generally higher
Product movement Suspension Plug / slug / dense bed
Abrasive product Wear may be critical May offer an advantage
Brittle product Product damage may increase May be more suitable
Continuous transport Very suitable Depends on design
Batch transport Usable Very common
Initial investment Generally lower Generally higher
System control Relatively simple May be more advanced
Air consumption May be high May be lower
Filter air load May be higher May be lower
Product variety Very wide More sensitive to material behavior
This table is for preliminary selection.
The fact that a product is abrasive does not, by itself, mean that “dense-phase transport must be used.”
Material testing and process data are required.
1. Comparison in Terms of Conveying Speed
One of the most notable differences between the two systems is conveying speed.
Dilute phase
Sufficient air velocity is required to keep the particles suspended in the air stream.
Therefore, products can travel through the pipe at high speeds.
Dense-phase
The goal is to transport the product at lower speeds and higher concentrations whenever possible.
This difference is particularly important at pipe elbows.
As a particle accelerates, the kinetic energy it possesses increases when it strikes the pipe wall.
This can lead to:
- wear,
- particle breakage,
- and the formation of fine dust.
2. Which Is More Advantageous in Terms of Wear?
In the case of abrasive products, transport velocity becomes critical.
For example:
- silica,
- sand,
- ash,
- cement,
- certain minerals,
- and glass raw materials
can cause severe wear on pipe and elbow surfaces.
In a high-velocity dilute-phase system, particles strike pipe elbows with high energy.
In a dense-phase system, it may be possible to control pipeline wear by reducing the product velocity.
In Macawber’s real-world field examples involving abrasive sand and vermiculite applications, the low-velocity dense-phase system is used to reduce the wear experienced in existing high-velocity systems.
However, an important point:
Using a dense-phase system does not automatically eliminate pipeline wear.
Abrasion is determined by:
- product hardness,
- velocity,
- pipe material,
- elbow radius,
- direction changes,
- and product concentration
combined.
3. Dense Phase or Dilute Phase for Fragile Products?
Conveying speed is of great importance for products where the granular form must be preserved.
For example:
- certain plastic granules,
- food granules,
- crystalline products,
- pellets,
- tablets, or similar sensitive materials
can break when conveyed at high speeds.
Breakage:
- reduces product quality,
- creates extra dust,
- and alters particle distribution.
Macawber’s technical explanation regarding fragile materials also identifies impacts against pipes and elbows, as well as shearing effects, as the primary causes of particle damage; it notes that low-speed dense-phase regimes can mitigate these effects.
4. Comparison in Terms of Air Consumption
In pneumatic conveying systems, a significant portion of energy consumption is spent generating the conveying air.
In the dilute-phase system, higher air flow rates may be required to keep the product in suspension.
In the dense-phase system, however, the same amount of product can be transported with a higher solids loading ratio.
Simplified:
Solids loading ratio = Mass of transported product / Mass of conveying air
As the solids loading ratio increases, the amount of air used for the same tonnage of product may decrease.
However, there is a critical misconception here:
Using less air does not necessarily mean that a dense-phase system will consume less electricity in every situation.
This is because dense-phase systems can use air at higher pressures.
In an energy assessment,
air flow rate × pressure × system efficiency × operating time
must be considered together.
5. Comparison in Terms of Pressure
Generally, dilute-phase systems operate at low differential pressures, while dense-phase systems may require higher pressures.
In the comparison by Jenike & Johanson, pressure ranges of approximately below 1 bar for dilute-phase and higher ranges (depending on the application) for dense-phase are described.
However, these are not fixed design values to be used for equipment selection.
The actual pressure requirement is calculated based on:
- product,
- capacity,
- pipe diameter,
- length,
- vertical rise,
- elbows,
- and flow regime
.
6. Which Is Better in Terms of Capacity?
The answer to this question is:
“It depends on the system.”
Capacity cannot be estimated by selecting only one of the concepts—dense phase or dilute phase.
When evaluating capacity
in kg/h or t/h,
the following parameters must be known:
- bulk density,
- particle size distribution,
- conveyance distance,
- pipe diameter,
- feed equipment,
- air system,
- receiver capacity.
Dense-phase technologies can be scaled to high tonnages; however, not every product can be transported stably in the dense phase. Jenike & Johanson specifically note that while the dense phase can offer high-capacity advantages, product suitability is critical.
7. The Difference Between Continuous and Batch Operation
Dilute-phase
It is quite useful in continuous processes.
For example:
Silo → Rotary Valve → Blower Line → Process
continuous product transfer can be achieved in this manner.
Dense-phase
In systems using pressurized vessels, the process typically operates in a cycle consisting of:
- tank filling,
- shut-off,
- pressurization,
- transportation,
- pressure relief,
- and refilling
.
Consequently, a batch or semi-batch character may emerge.
If uninterrupted product feeding is required on a production line, the compatibility of this cycle behavior with the process must be carefully evaluated.
8. Comparison in Terms of Product Segregation
The separation of a mixture during transport is a serious quality issue in some processes.
Components that differ in;
- particle size,
- particle density,
- aerodynamic behavior
may behave differently in high-velocity air.
This situation can compromise the homogeneity of the mixture.
Low-velocity dense-phase conveying may offer the advantage of reducing segregation in some mixtures. Macawber also notes that low-velocity dense-phase conveying has the advantage of limiting separation in pre-blended products.
However, actual performance must be tested with the specific product mixture.
9. Filter Size and Dust Load
When the air in the pneumatic conveying line reaches its destination, it must be separated from the product.
Therefore,
- equipment such as
- filters,
- cyclones,
and receivers
may be required.
As the air flow rate increases, so does the volume of air that must pass through the filtration system.
Consequently, high-flow, dilute-phase systems may require greater filtration capacity.
In dense-phase systems, using a lower air flow rate can reduce the air load on the terminal filtration equipment.
This aspect should be evaluated not only in terms of energy but also in terms of CAPEX + maintenance costs.
10. Initial Investment Cost
One of the advantages of dilute-phase systems is often their simpler system architecture.
Typical equipment includes:
- blower,
- rotary valve,
- piping,
- receiver,
- filter.
In dense-phase systems, however,
- pressurized conveying vessels,
- a higher-pressure air system,
- specialized valves,
- pressure instrumentation,
- and automation
may be required.
For this reason, the initial investment is generally higher.
However, the initial investment cost alone should not be the sole criterion for selecting a system.
11. Total Cost of Ownership (TCO)
A proper comparison should be made as follows:
CAPEX
- conveyance equipment,
- piping,
- filter,
- compressor/blower,
- automation,
- installation.
OPEX
- electricity,
- compressed air,
- filters,
- maintenance,
- pipe and elbow replacement,
- spare parts,
- production downtime.
Product cost
- breakage,
- dust accumulation,
- product loss,
- quality loss.
For example, if a system with a low initial investment cost requires frequent elbow replacements due to an abrasive product, its total cost over five years may be higher.
Therefore, the decision should be based not on the question:
“Which system is cheaper?”
but rather on:
“Which system is more economical over its life cycle to convey this product at the target capacity?”
Dense Phase or Dilute Phase? Preliminary Selection Table by Product
Product / Characteristic Initial Evaluation
Very fine, easily transportable powder Both systems can be evaluated
Abrasive mineral Dense phase is a strong candidate
Brittle granules Low-speed dense phase should be evaluated
Sticky / cohesive product Product testing is critical; dilute phase may be advantageous
Continuous high-frequency feeding: Dilute-phase may be advantageous
Long distance: Dense-phase may be a strong candidate
Multiple feed points: Dilute-phase or vacuum system may provide an advantage
Mixture segregation is critical: Low-velocity transport should be evaluated
Simple and low-CAPEX solution: Dilute-phase may be advantageous
Pipe wear is critical: Dense-phase should be evaluated
This table does not constitute a final engineering decision.
Which Materials Can Be Conveyed in Dense-Phase?
For dense-phase conveyance, it is not sufficient for the product to be merely dense.
The material’s:
- air retention capacity,
- permeability,
- particle size distribution,
- cohesion,
- friction characteristics,
- moisture content
determine the flow regime.
While some products can form a stable plug/slug regime, others may not behave in a manner suitable for dense-phase transport.
For this reason, bulk solid tests become particularly important in critical projects.
Which Materials Are Suitable for Dilute-Phase Transport?
Dilute-phase transport can be applied to a very wide range of products.
For example, when properly designed, the following can be conveyed:
- flour,
- starch,
- various plastic powders and granules,
- certain chemicals,
- additives
can be conveyed.
The advantage is broad product compatibility.
The disadvantage, however, is the potential for adverse effects on sensitive and abrasive products due to high velocities.
Positive Pressure or Vacuum?
In addition to phase selection, the system’s pressure direction must also be determined.
Positive-pressure system
The air source is located before the product inlet.
The product is pushed through the pipeline toward the destination.
It is particularly suitable for:
- longer distances,
- higher capacity,
- and multiple destinations from a single source.
Vacuum system
The vacuum unit is located at the end of the system.
The product is drawn from the source.
In particular, it can offer advantages in applications such as:
- multiple collection points,
- precise dust control,
- short- to medium-distance transport,
- and process machine feeding.
An internal link to MASTRON’s Vacuum Conveyor Systems guide should be provided here.
The Role of PneuPump in Dense-Phase Conveyance
From the perspective of MASTRON’s product architecture, one of the most important commercial links in this article should be PneuPump.
PneuPump-type pressurized conveying systems can be considered for creating low-speed dense-phase transfer with suitable products.
The basic process logic is as follows:
Feeding → Pressurized Hopper → Pressurization → Conveying → Discharge
.
In these systems, the goal is not merely to generate high pressure.
The primary goal is
to convey the product at the correct solid-to-air ratio and at a controlled rate.
A strong internal link to the PneuPump product page should be provided here.
Why Are Rotary Valves and Air Locks Important in Dilute-Phase Systems?
In a dilute-phase positive-pressure system, the product must be fed into the pipeline in a controlled manner.
For this purpose, a rotary valve / star feeder / air lock can be used.
The primary functions of a rotary valve are:
- to feed the product in a controlled manner,
- to limit air flow between pressure zones,
- and to ensure a steady flow of product into the conveying line.
However, a rotary valve should not be considered equipment that provides completely zero air leakage.
Actual leakage depends on factors such as:
- rotor-housing tolerances,
- pressure differential,
- wear,
- temperature,
- and the product
itself.
This section should include links to MASTRON’s Air Lock and Rotary Valve content.
Sample Technical Comparison
The following scenario is merely an educational example; it does not represent actual equipment selection.
Process
Product: abrasive mineral dust
Capacity: 15 t/h
Horizontal conveyance: 80 m
Vertical conveyance: 18 m
Operating Time: 16 hours/day
Option A – Dilute Phase
Potential advantages:
- simpler system,
- continuous operation,
- lower initial investment.
Potential disadvantages:
- high particle velocity,
- elbow wear,
- greater volume of conveying air.
Option B – Dense Phase
Potential advantages:
- lower product velocity,
- potential for reduced wear,
- higher solid-to-air ratio.
Potential disadvantages:
- more complex control,
- need for a pressure vessel,
- higher CAPEX.
At this point, the system selection should only be made after comparing:
- actual product testing,
- pressure drop calculation,
- pipe diameter calculation,
- air consumption,
- five-year TCO
.
Why Is Pipe Diameter Critical in a Pneumatic Conveying System?
An incorrect pipe diameter can lead to serious performance issues in both phases.
If the pipe is selected too small
- gas velocity increases,
- pressure loss increases,
- wear may increase,
- product damage may increase.
If the pipe is selected too large
- air velocity decreases,
- material buildup may occur,
- conveyance may become unstable,
- blockages may begin.
Therefore, the “a larger pipe is safer” approach is incorrect.
Risk of Blockage in the System
The dense phase is particularly sensitive to control of the conveying regime.
Blockage can occur due to:
- incorrect pressure,
- an inappropriate product-to-air ratio,
- line geometry,
- changes in humidity,
- or irregular product feeding.
In the
In the dilute phase, if the conveying speed drops below a critical level, it can cause the product to accumulate inside the pipe.
This topic should be detailed in a separate cluster article:
“Why Do Pneumatic Conveying Lines Clog? 10 Causes and Technical Solutions”
.
10 Technical Questions for Phase Selection
Before a facility decides between dense-phase and dilute-phase systems, it must answer the following questions:
- What is the product to be conveyed?
- What is the bulk density in kg/m³?
- What is the particle size distribution?
- Is the product abrasive?
- Is the product brittle?
- Is the product moist or sticky?
- What is the target capacity in t/h?
- What are the horizontal and vertical conveying distances?
- Will the system operate continuously or in batches?
- What are the energy and maintenance goals?
Selecting a phase based solely on the product name without this information is incorrect.
Pre-Proposal Technical Information Form
Data Required Information
Product Commercial/technical name
Bulk density kg/m³
Particle size distribution µm / mm
Capacity kg/h or t/h
Horizontal distance meters
Vertical distance meters
Number of elbows pieces
Starting point: silo, hopper, Big Bag, etc.
Destination point: silo, mixer, etc.
Temperature °C
Moisture %
Abrasiveness: low / medium / high
Fragility: present / absent
Operation: continuous / batch
Daily operating hours: hours/day
Available air flow rate / pressure
Product changeover: present / absent
If this table is converted into a PDF technical project form at the end of the article, organic traffic can also be converted into lead generation.
8 Common Mistakes Made in Pneumatic Conveying System Selection
1. Saying “Dense phase is always better”
Wrong. Not every product can be conveyed in a stable dense-phase regime.
2. Looking only at capacity
The metric tons per hour value does not explain product behavior.
3. Considering pipe wear only after the investment
Especially in mineral processing, wear must be evaluated during the initial design phase.
4. Comparing only motor power, not air consumption
System operating pressures and flow rates differ.
5. Neglecting vertical distance
A 50-meter horizontal run is not the same as a 50-meter vertical run.
6. Not including elbows in the total distance
Every change in direction adds resistance to the system.
7. Failing to measure product breakage
Product quality may be compromised even when nominal capacity is achieved.
8. Making decisions based solely on CAPEX
The right decision should be made based on total cost of ownership.
Frequently Asked Questions
What is the fundamental difference between dense-phase and dilute-phase pneumatic conveying?
In dilute-phase systems, the product is transported largely in suspension within high-velocity air, while in dense-phase systems, the product moves at higher concentrations and lower speeds in the form of a plug, slug, or dense bed.
For which products is dense-phase pneumatic conveying used?
It is particularly suitable for abrasive, brittle, or bulk materials where low conveying speeds offer an advantage. However, the product’s suitability for dense-phase conveying must be verified separately.
What is the advantage of dilute-phase pneumatic conveying?
The system structure is generally simpler, it is suitable for continuous conveying, and it can be used with a very wide range of materials.
Does the dense-phase system consume less energy?
Not in every case. A lower air flow rate may offer an advantage, but the dense-phase system may require higher pressure. Energy consumption should be compared by calculating flow rate, pressure, efficiency, and operating time together.
Which system causes more pipe wear?
With the same product and similar line conditions, high product velocity can increase wear. Therefore, a low-velocity dense-phase system may offer an advantage when handling abrasive materials.
Which system should be used for brittle granules?
A low-velocity dense-phase system is a strong candidate because it can reduce the high-speed impact of particles against pipes and elbows. However, product testing is recommended.
Can a dense-phase system operate continuously?
It is possible depending on the technology, but many dense-phase systems that use pressure vessels operate in batch or semi-batch cycles.
Is PneuPump a dense-phase system?
PneuPump can be considered within the scope of system solutions that utilize low-velocity dense-phase pneumatic conveying principles under suitable product and design conditions. The exact operating regime must be determined by the actual application design.
Conclusion: Dense Phase or Dilute Phase?
There is no universal “best phase” in pneumatic conveying systems.
The right system is one that
conveys the product at the target capacity, with acceptable energy consumption, minimal product damage, and sustainable maintenance costs.
The dilute phase may offer
- a simpler,
- continuous,
- and widely compatible
solution.
The dense phase, on the other hand,
- may stand out due to
- lower conveying speeds,
- fewer particle collisions,
- potential advantages for abrasive and brittle products,
and a high solid-to-air ratio.
However, the decision should not be based solely on general comparison tables.
Bulk density, particle size, abrasiveness, brittleness, capacity, distance, and line geometry must all be evaluated together.
Determine the Right Conveying Regime for Your Project
If you are experiencing the following issues in your existing pneumatic conveying line:
- pipe wear,
- high air consumption,
- product breakage,
- insufficient capacity,
- frequent blockages,
- high maintenance costs
or if you are planning a new line, it is essential to consider the entire system—not just the equipment.
Share details about the product to be conveyed, bulk density, capacity, horizontal/vertical distance, and your process conditions with the MASTRON Process engineering team. Let’s evaluate the best solution for your specific application—whether it’s dense-phase, dilute-phase, PneuPump, or alternative conveying technologies.
