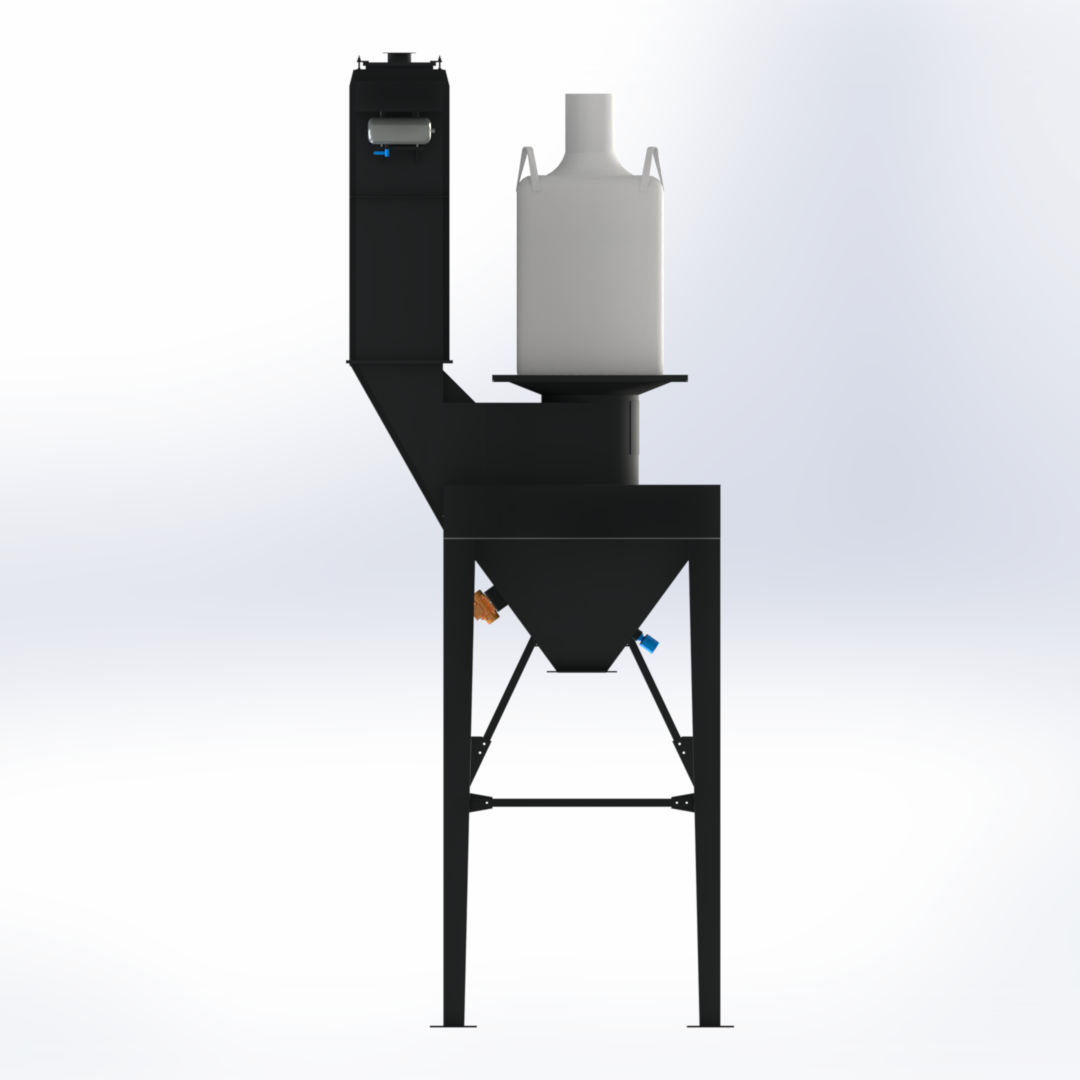

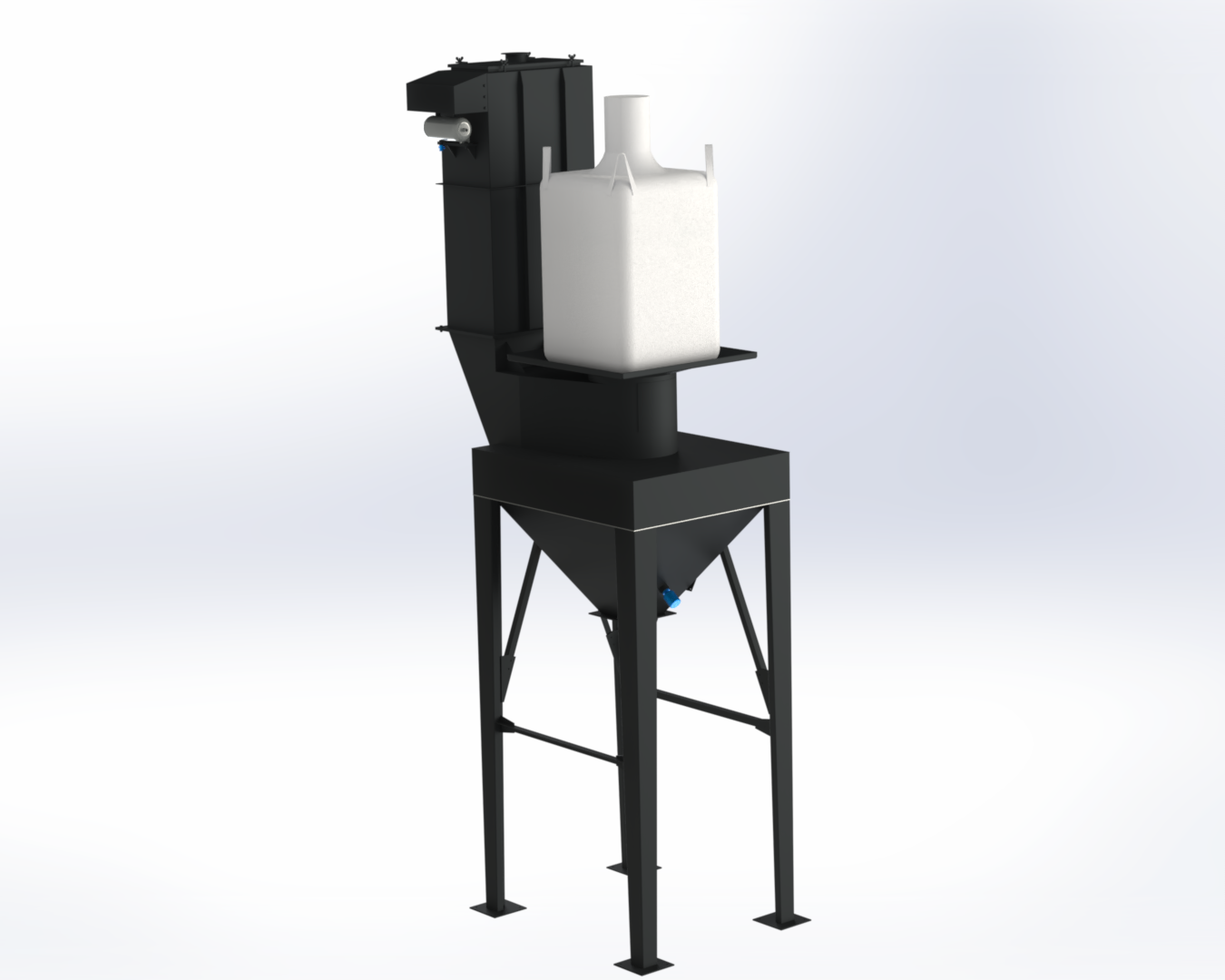

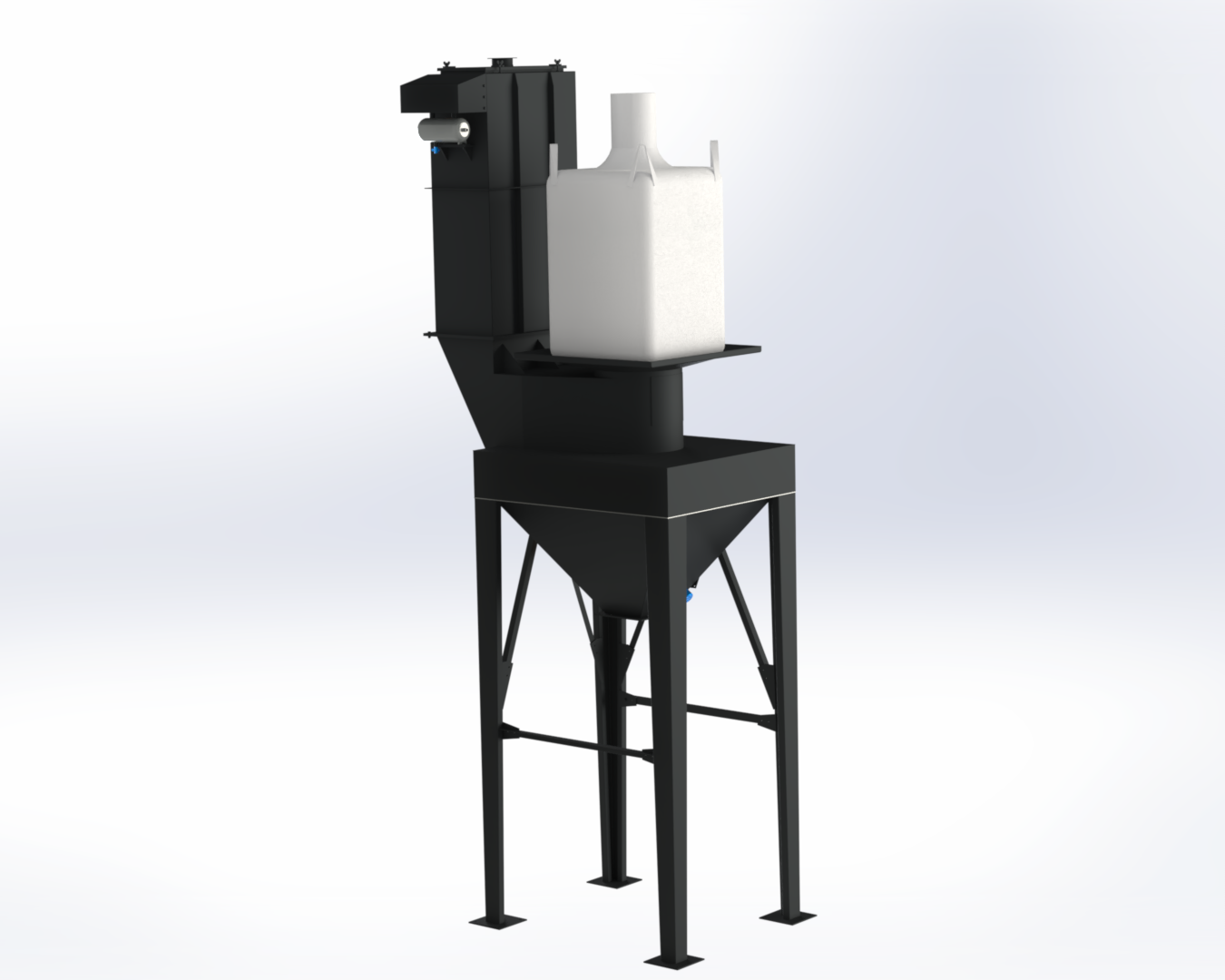

Big Bag Unloading Systems: Safe and Efficient Material Transfer
Big bag unloading units are equipment that enable safe, dust-free, and fast emptying of large bags known as FIBC (Flexible Intermediate Bulk Container). Widely used in food, chemical, pharmaceutical, and construction industries.
System Components
Frame structure carries and supports the big bag. Electric hoist or pneumatic lifting system raises and positions the big bag. Vibrator facilitates material flow. Dust collection unit filters dust generated during emptying. Weighing system measures the discharged amount.
Working Principle
Big bag is hung on the frame with lifting system. Bottom discharge opening is opened and material flow begins. Vibrator ensures complete emptying of material. Dust collection system filters generated dust and provides clean air discharge. Optional weighing system controls dosage.
Automation Options
Manual systems are suitable for low-capacity and budget-friendly applications. Semi-automatic systems automate lifting and emptying operations. Fully automatic systems are PLC-controlled and work integrated with weighing and dosing systems.
Technical Features
Emptying capacity varies between 500 and 3000 kg/hour depending on material properties. Frame height can be customized between 2.5 and 4 meters. Stainless steel or painted steel housing options are available. ATEX-certified explosion-protected versions are offered.
Application Areas
Used in flour, sugar, spice emptying in food sector, powder chemical transfer in chemical industry, raw material feeding in pharmaceutical sector, plastic granule emptying, and cement and gypsum transfer in construction sector.
Hygiene and Safety
Closed system structure prevents contamination. Dust collection unit provides clean working environment. Electrostatic grounding minimizes explosion risk. Safety locks ensure operator safety.
Get detailed information from our technical team for big bag unloading solution.
