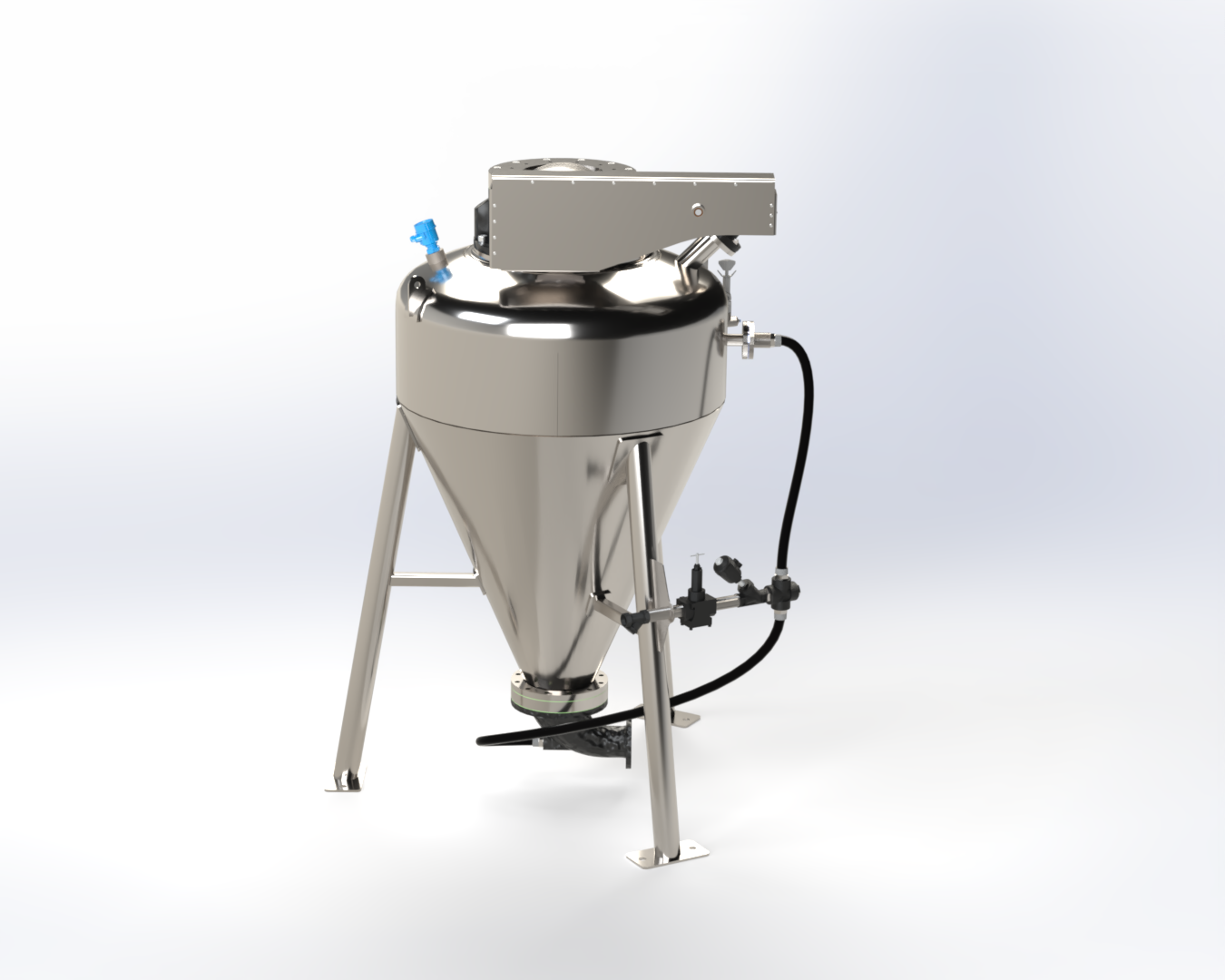

Product Image
Product image 1

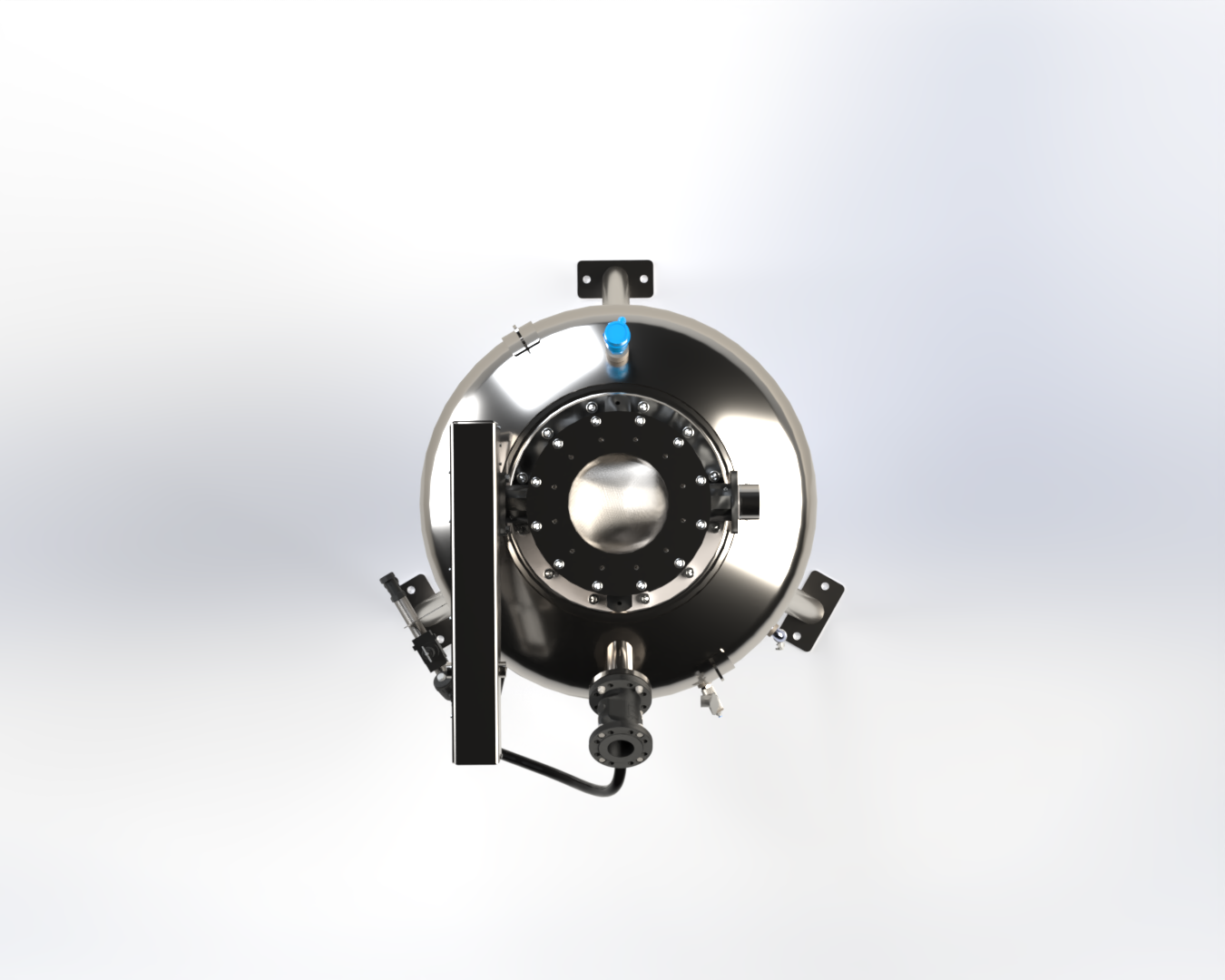

Product image 2

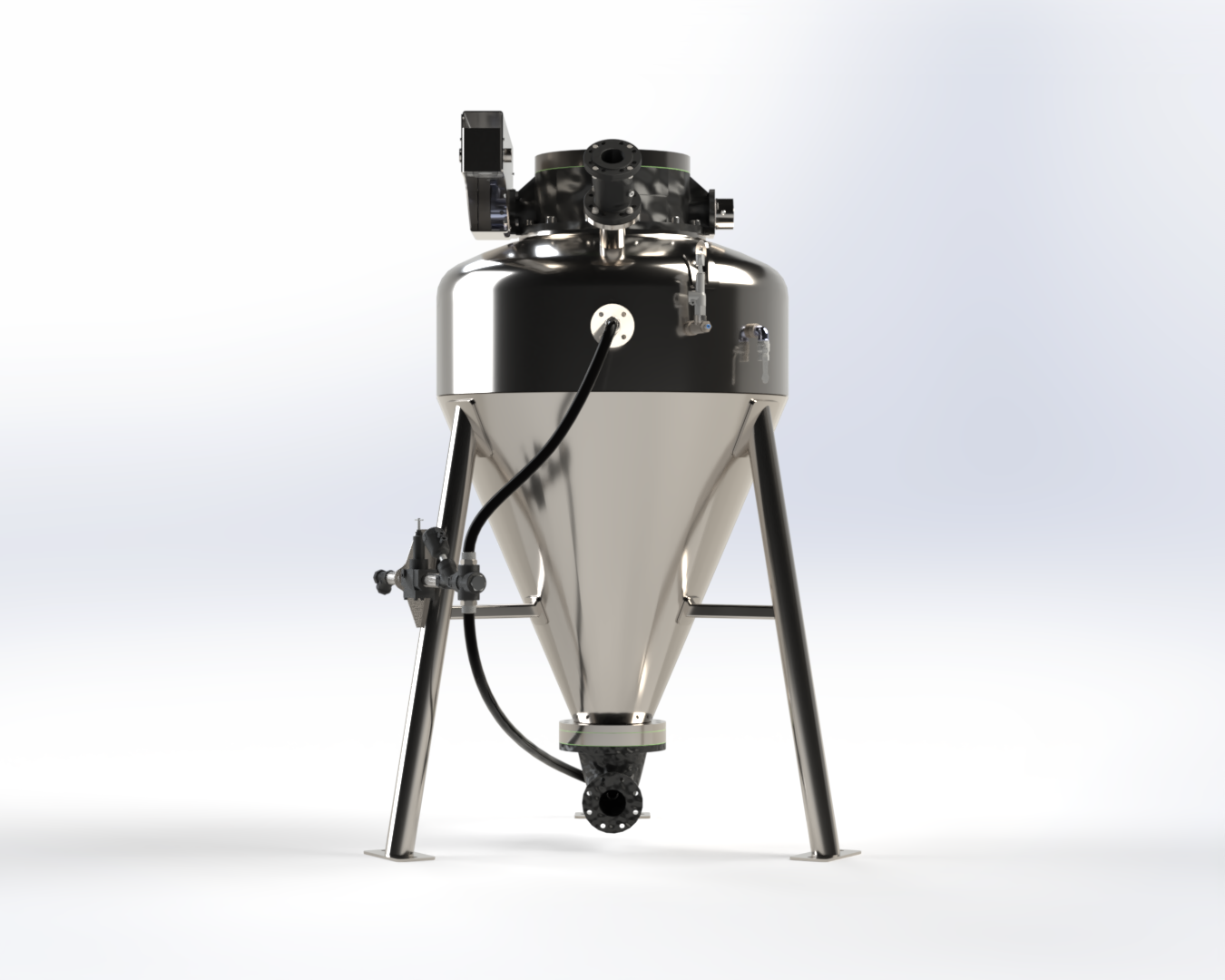

Product image 3

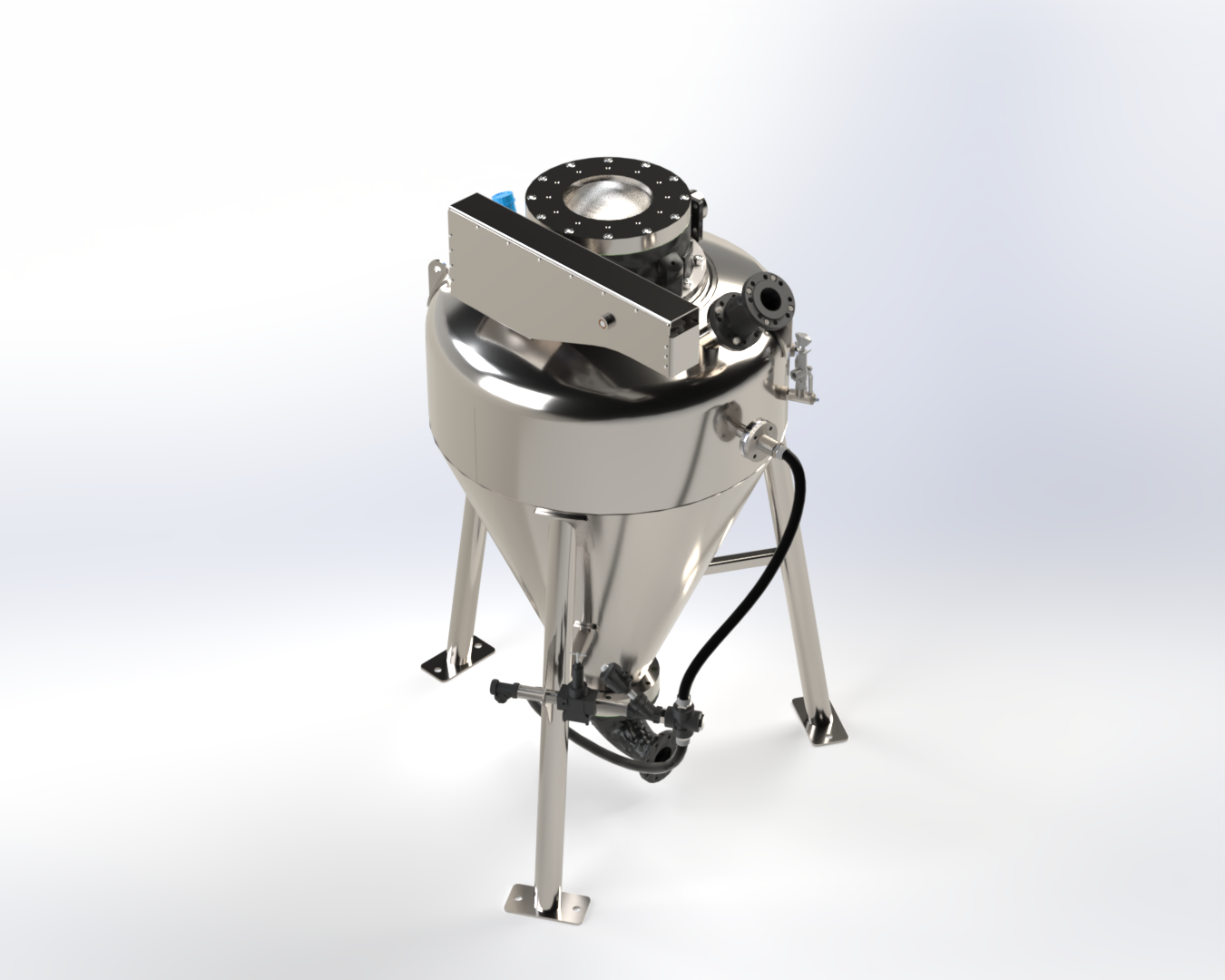

Product image 4

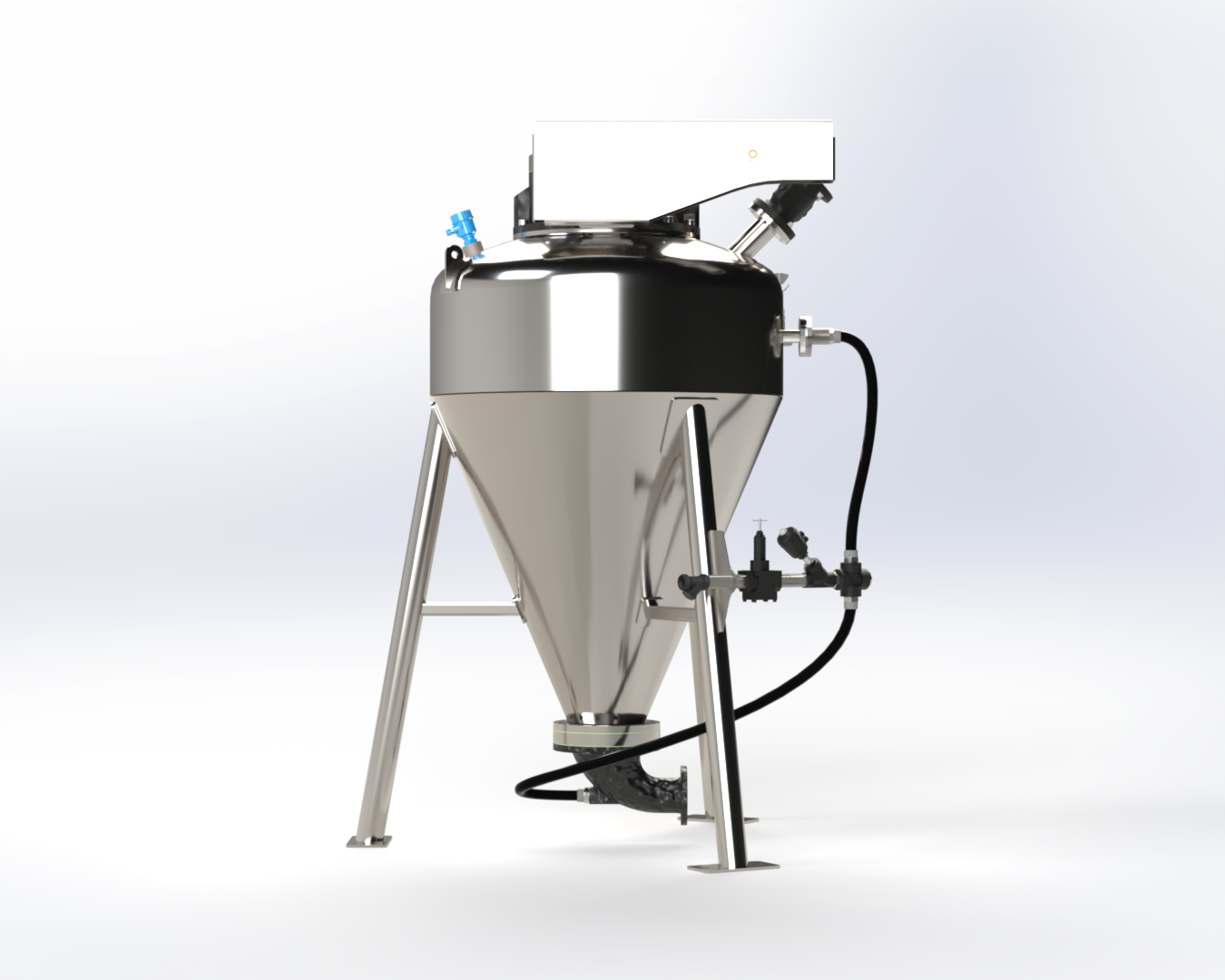

Product image 5

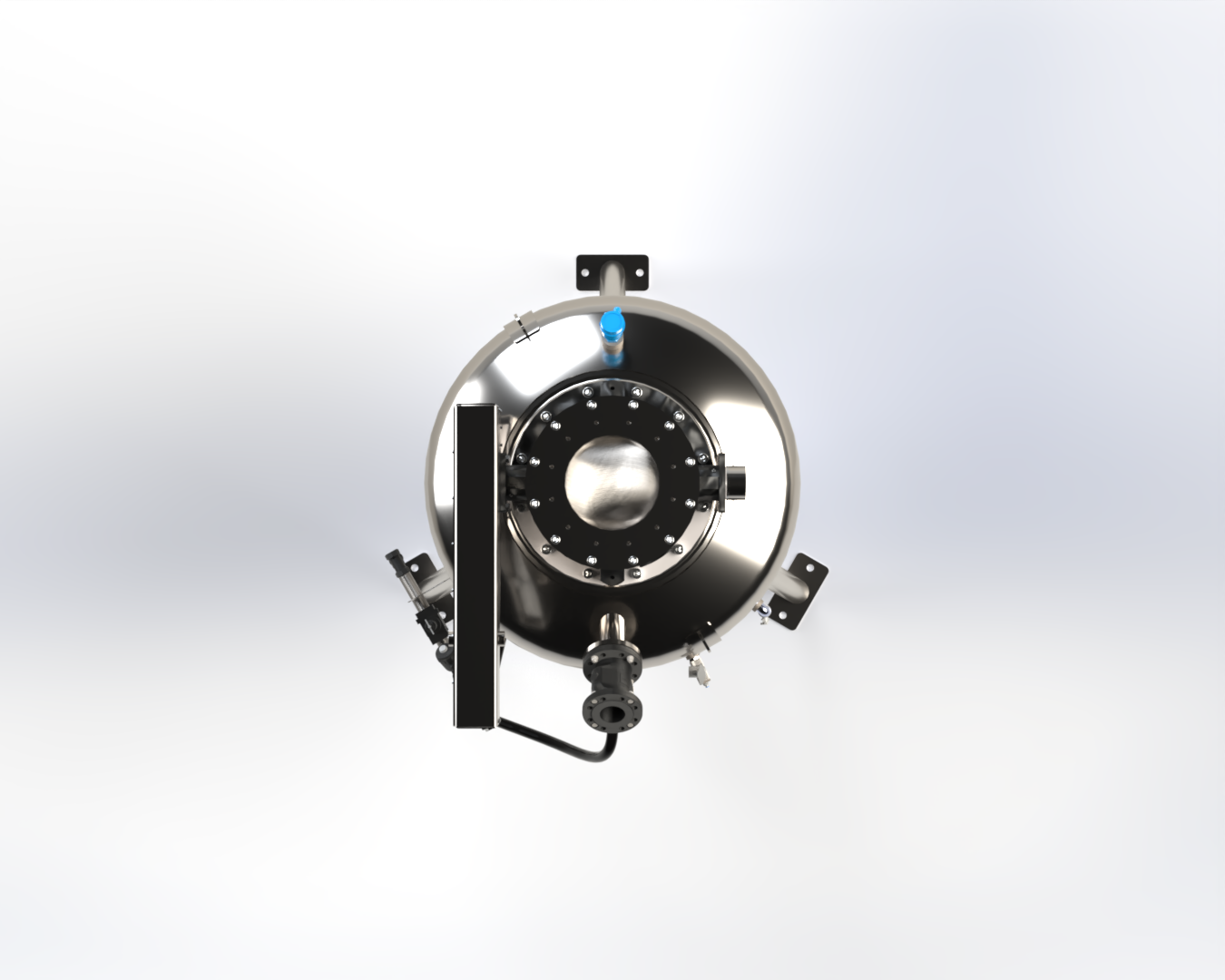

Product image 6

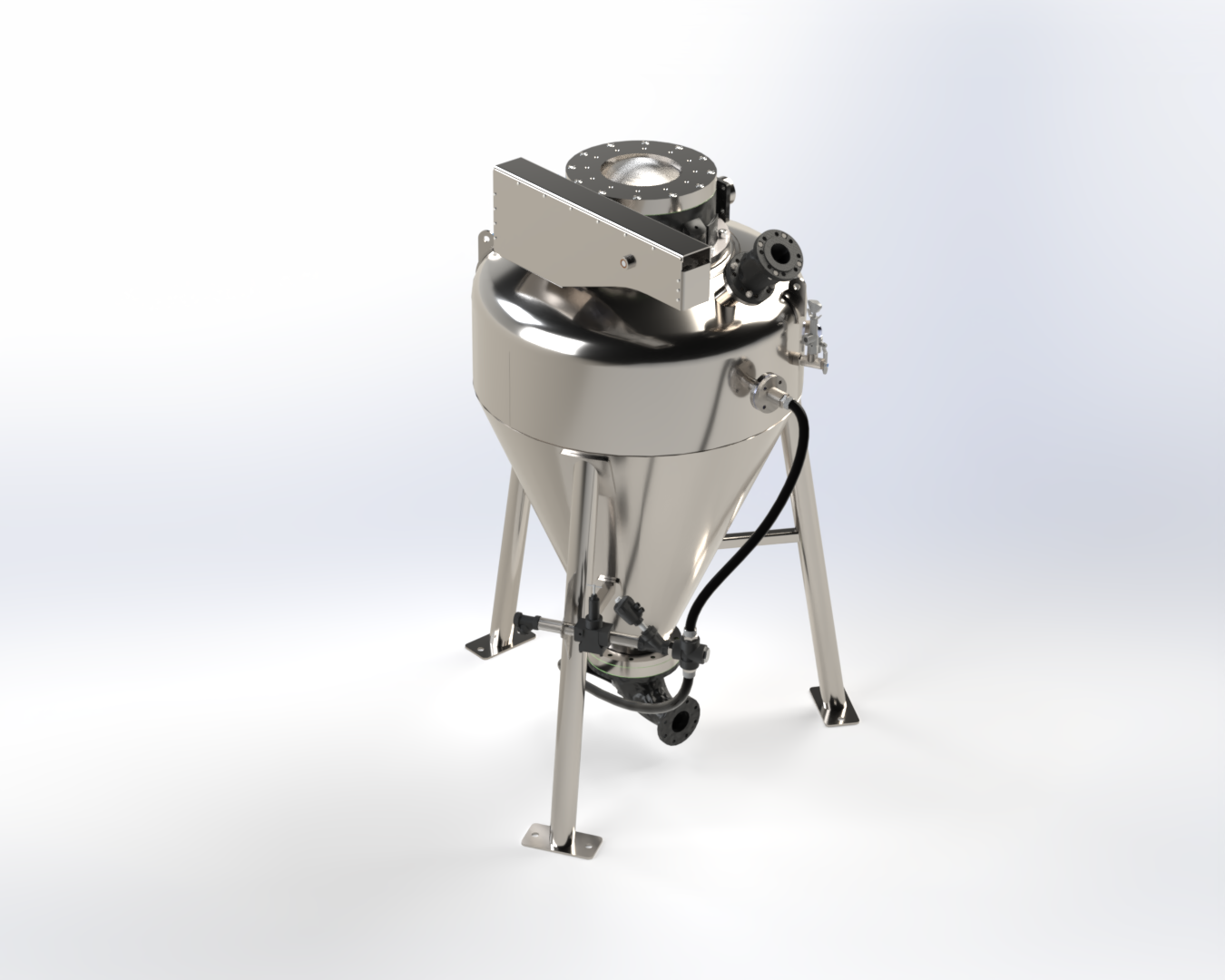

Product image 7

PneuPump

Pneumatic pump is an advanced pneumatic conveying system developed to provide high efficiency, low energy consumption, and safe operation in industrial material handling processes. It stands out with its dense-phase conveying principle, enabling the transportation of abrasive, fragile, powder, pellet, and granular materials at low conveying velocities, minimizing pipeline wear and preventing product degradation. This ensures a stable, reliable, and efficient conveying solution even under demanding process conditions. Pneumatic pumps are an ideal solution for applications requiring long-distance and controlled material transfer in industrial processes.

Technical Configuration

  • Stainless steel conveying vessel, D-Valve, and pipeline
  • Available in various vessel and D-Valve sizes to meet different process requirements.
  • Water-cooled D-Valve and/or special sealing solutions
  • Designed for processes involving the conveying of high-temperature materials.
  • ATEX-compliant instrumentation
  • Certified equipment suitable for operation in potentially explosive atmospheres.
  • Customized pipeline design for difficult-to-convey materials
  • Including flow-assist systems and special line configurations to ensure stable conveying.

Product Advantages

  • Provides low energy consumption through optimized air usage.
  • Offers easy maintenance and fast spare part replacement thanks to its modular design.
  • Pressure-controlled airflow prevents material losses along the conveying pipeline.
  • Low conveying velocity principle ensures that fragile and sensitive materials are not damaged.
  • Enables easy integration with existing production lines, ensuring fast and trouble-free adaptation.
  • Fully enclosed system design prevents material degradation and ensures dust-free operation.
  • Dense-phase conveying requires less air, resulting in the use of smaller filters and lower-capacity air supply systems.
  • Conveying solid materials with pressurized air reduces direct contact between the material and the pipeline, minimizing wear.
  • Integrated PLC control system enables fully automatic, operator-free operation.
  • Ensures reliable conveying of dense and difficult-to-handle materials.

Components

  • Special inlet valve
  • Ensures material flow and complete pressure tightness in a single step. Prevents wear caused by pressure differentials, providing long service life and easy maintenance.
  • Robust conveying vessel
  • Operates with high-pressure air and is resistant to abrasion and material adhesion.
  • Special air control valves and pipeline system
  • Precisely regulate airflow, ensuring optimal pressure control and energy efficiency.
  • Integrated PLC control system
  • Fully automates and manages the entire conveying process.
  • User-friendly HMI interface
  • Touchscreen HMI provides easy operation. Compatible with Profinet, SCADA, and similar automation systems.
  • Level and pressure sensors
  • Enable a safe, traceable, and controlled conveying process. The system performs automatic interventions when required to maintain efficient operation.

Product Introduction Video

Application Areas

Gypsum and Building Materials
Cement
Recycling
Glass Industry
Ceramics Industry
Power & Energy Plants
Petrochemical
Mining
Chemical Industry
Pharmaceutical Industry
Food Industry
Agriculture
Foundry Industry
Construction
Plastics Industry
Steel Production

Product Guide & Technical Information

Dense Phase Conveyor System: PneuPump

Dense phase conveying — also referred to as dense conveyor, denseveyor, or dense flow conveying — is a pneumatic material transfer technology where powder, granule, and pellet materials are transported at low velocity and high concentration through a pipeline. Compared to conventional dilute phase pneumatic conveying, dense phase systems consume significantly less compressed air and minimize product degradation.

Mastron PneuPump is the most advanced application of dense phase conveyor technology. It is the preferred solution for transporting abrasive, fragile, and high-value materials without damage, in a dust-free and energy-efficient manner.

Pneumatic Pump (PneuPump): Energy Efficiency in Dense Phase Conveying

Pneumatic pumps are energy-efficient systems that realize dense phase conveying of powder and granular materials using compressed air. Ideal solution especially for long-distance transport, abrasive and fragile materials.

Dense Phase Conveying Technology

In traditional pneumatic conveying, material is transported in suspension in air (dilute phase). In dense phase conveying, material moves at low speed and high concentration. This method reduces energy consumption by 50-70%, minimizes material damage, and significantly reduces pipe wear.

Working Principle

Pneumatic Pump collects material in a pressurized tank. Tank pressure is increased with compressed air. Material is fed into the pipeline with controlled valve opening. Material moves like a piston at low speed (3-8 m/s). When it reaches the target point, the tank is refilled and the cycle starts again.

System Advantages

Energy consumption is 50-70% lower than conventional systems. Pipe wear is at minimum level. Integrity of fragile materials is preserved. Long-distance transport (1000 meters+) is possible. Can operate at high capacity (50 tons/hour+). Maintenance need is low.

Technical Features

Tank capacities vary between 50 liters and 1000 liters. Operating pressure is between 2 bar and 8 bar. Conveying distance can be between 50 meters and 1500 meters. Pipe diameters can be selected between 50 mm and 200 mm. Stainless steel, carbon steel, or special alloy tank options are available.

Application Areas

Used in cement and clinker transport in cement factories, grain and flour transfer in flour mills, plastic granule and powder chemical transport in chemical plants, mineral dust transportation in mining, and coal dust feeding in power plants.

Special Applications

Alumina ceramic lined pipelines are used for abrasive materials. Water-cooled valve systems are applied for high-temperature materials. ATEX-certified systems are preferred for materials with explosive properties.

Investment and Return

Initial investment cost is 15-25% higher than conventional systems. However, return on investment is achieved within 18-24 months with energy savings and low maintenance costs. Can provide trouble-free service for 15-20 years.

Contact our team for detailed information and project consultancy on dense phase conveying systems.
