Bucket Elevator Systems: Reliable Vertical Material Handling Solution
Bucket elevators are industrial equipment designed to safely and continuously transport powder, granular, and small-grained bulk materials vertically to elevated points. They offer an indispensable solution wherever vertical conveying is required, particularly in grain silos, cement plants, fertilizer facilities, and foundries. One of the most significant advantages of bucket elevators is the ability to achieve high-capacity conveying within a minimal floor footprint.
Working Principle

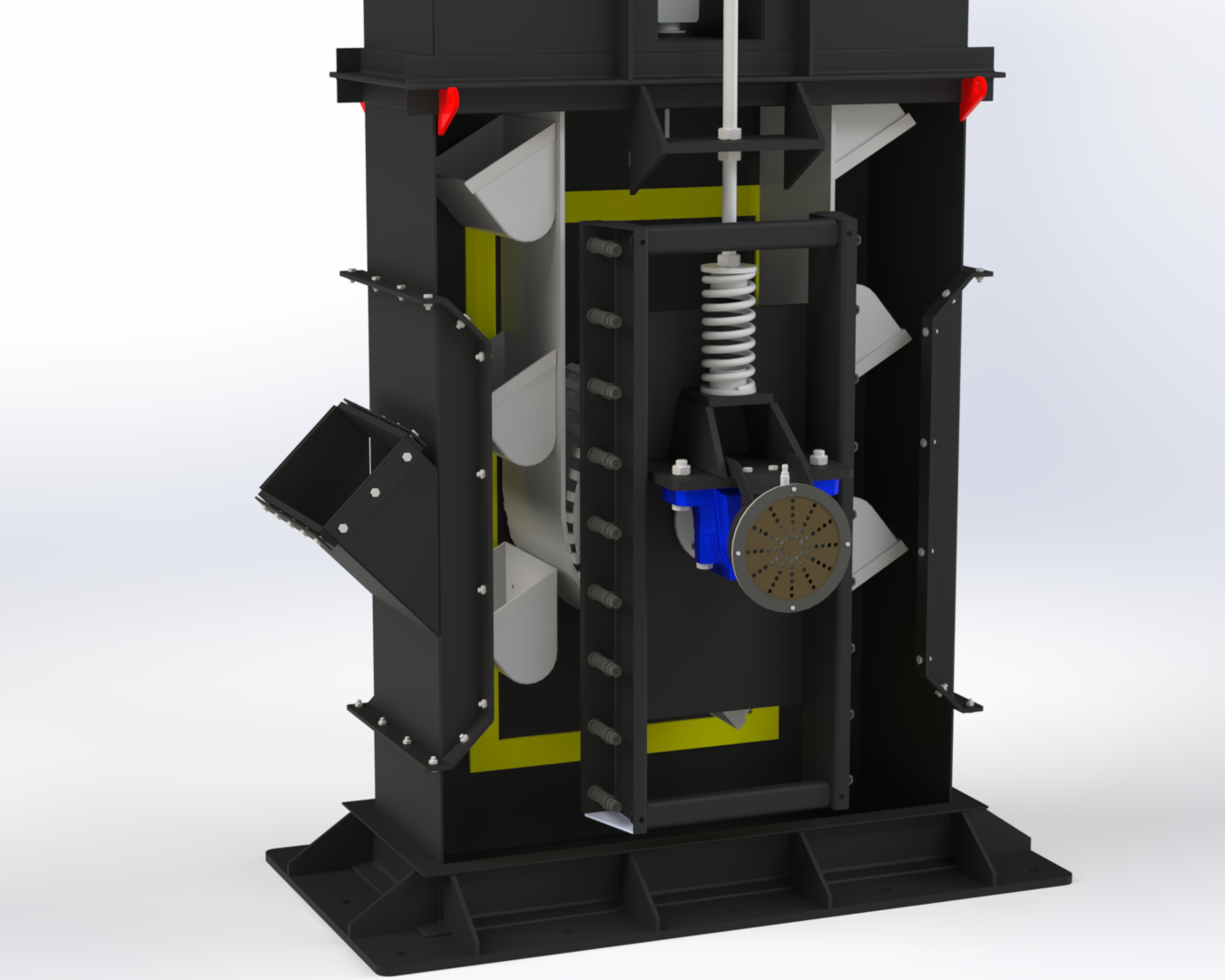

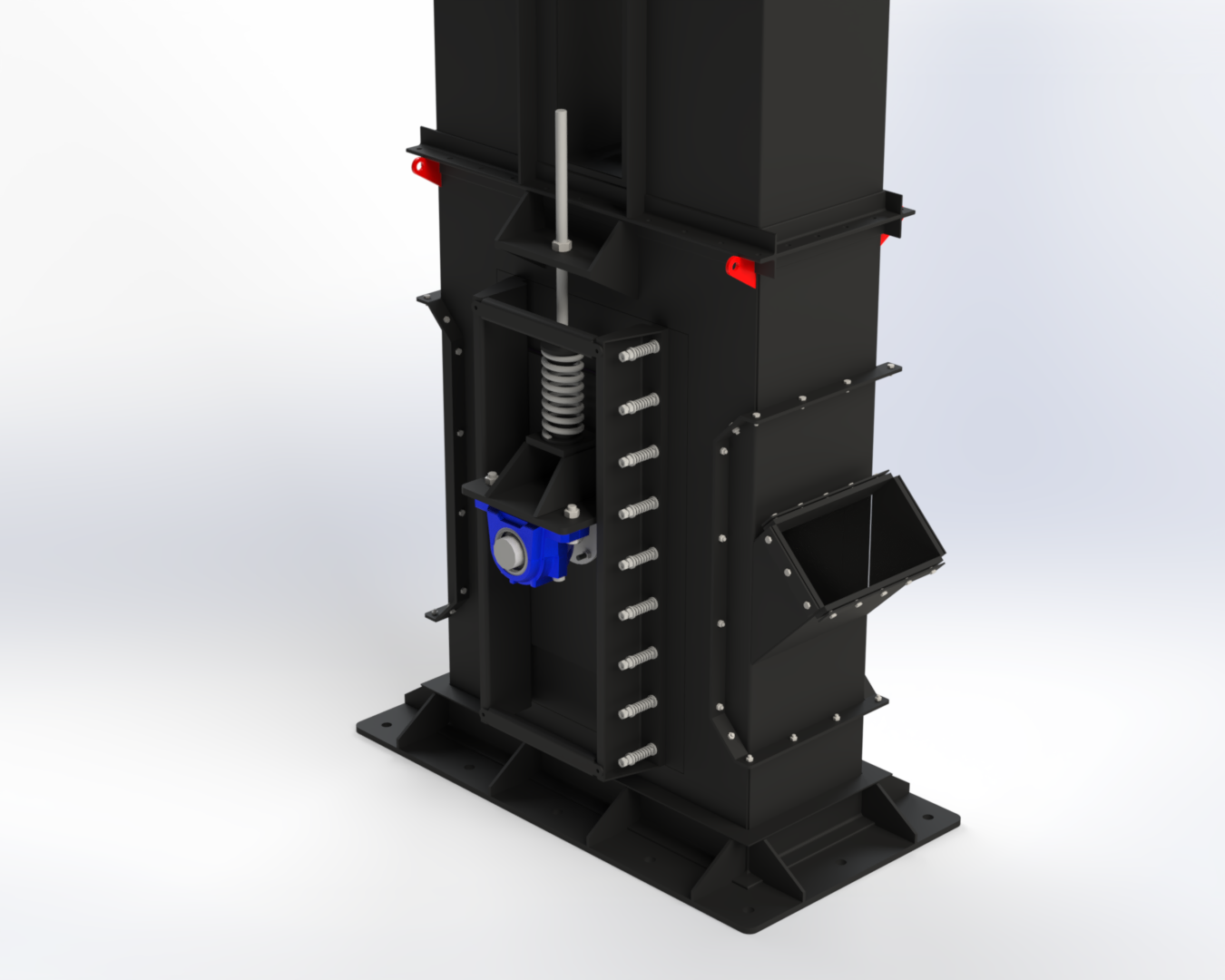

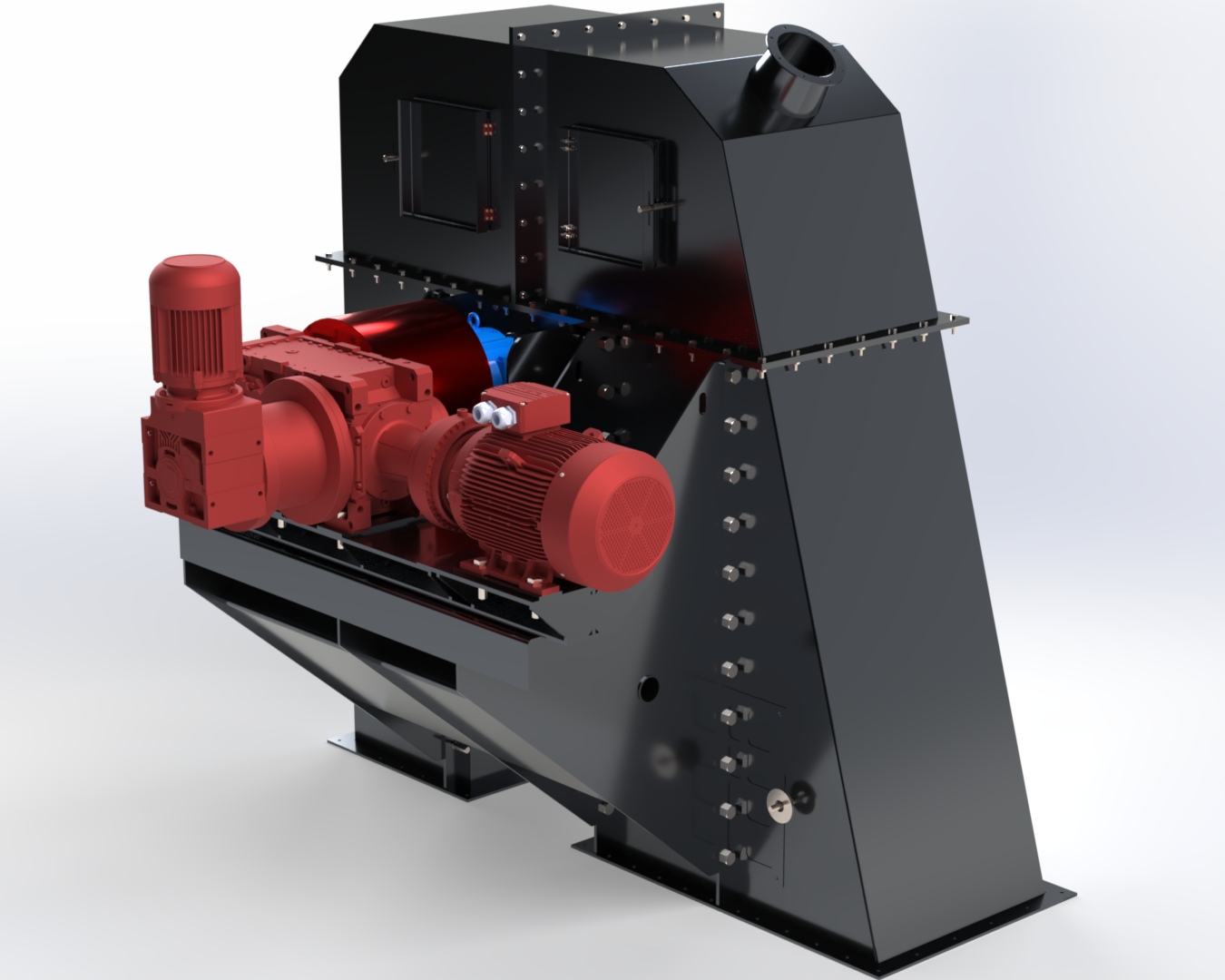

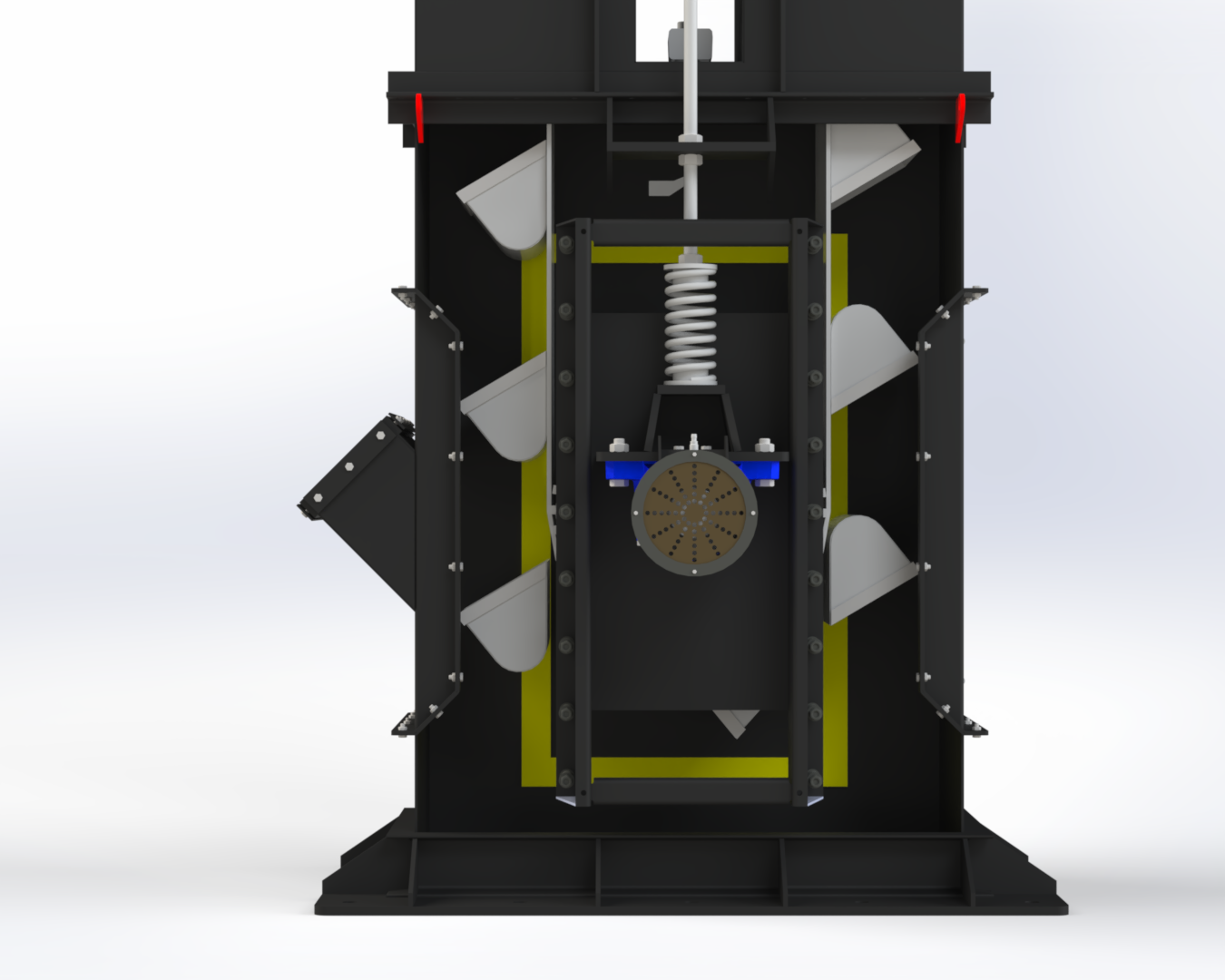

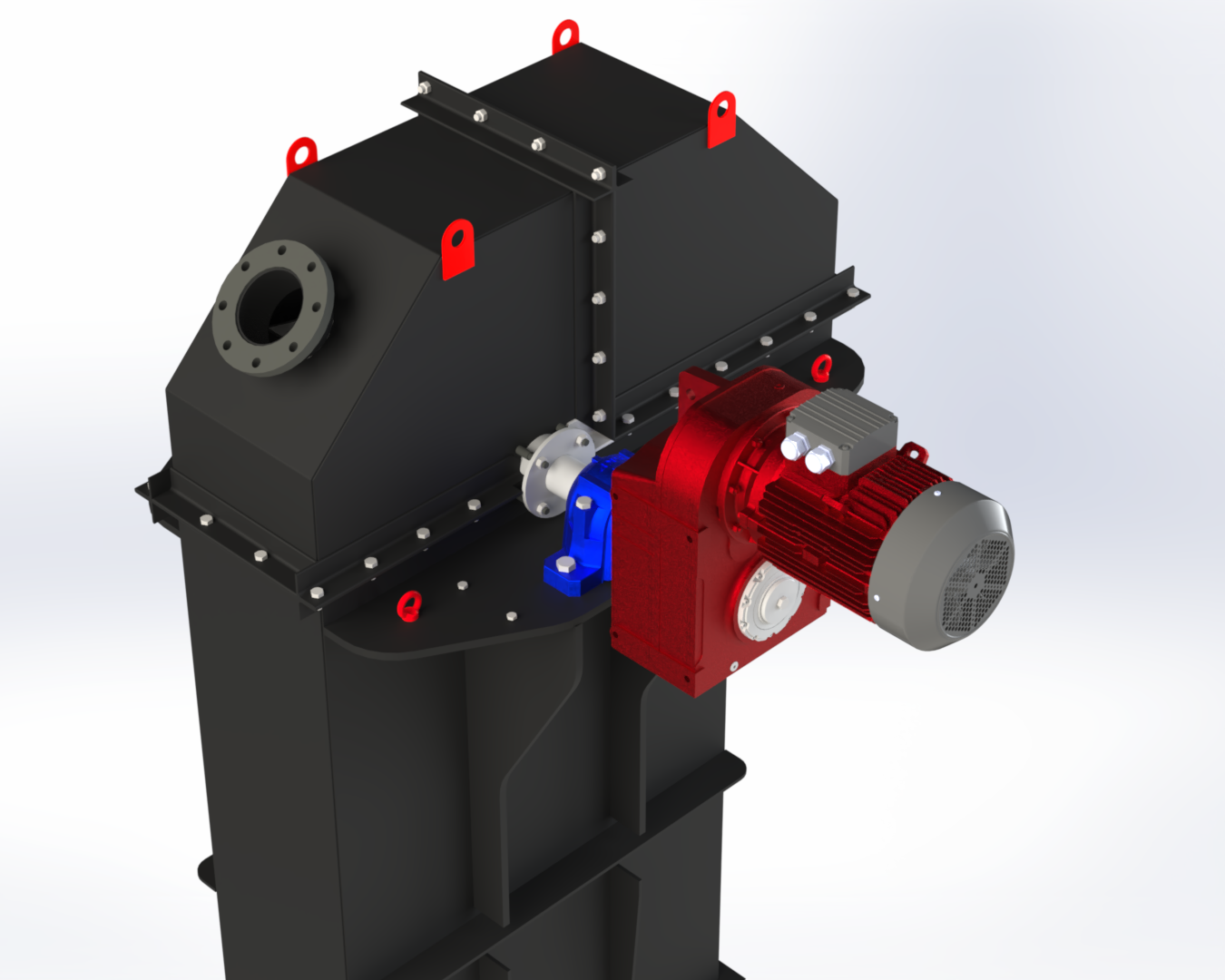

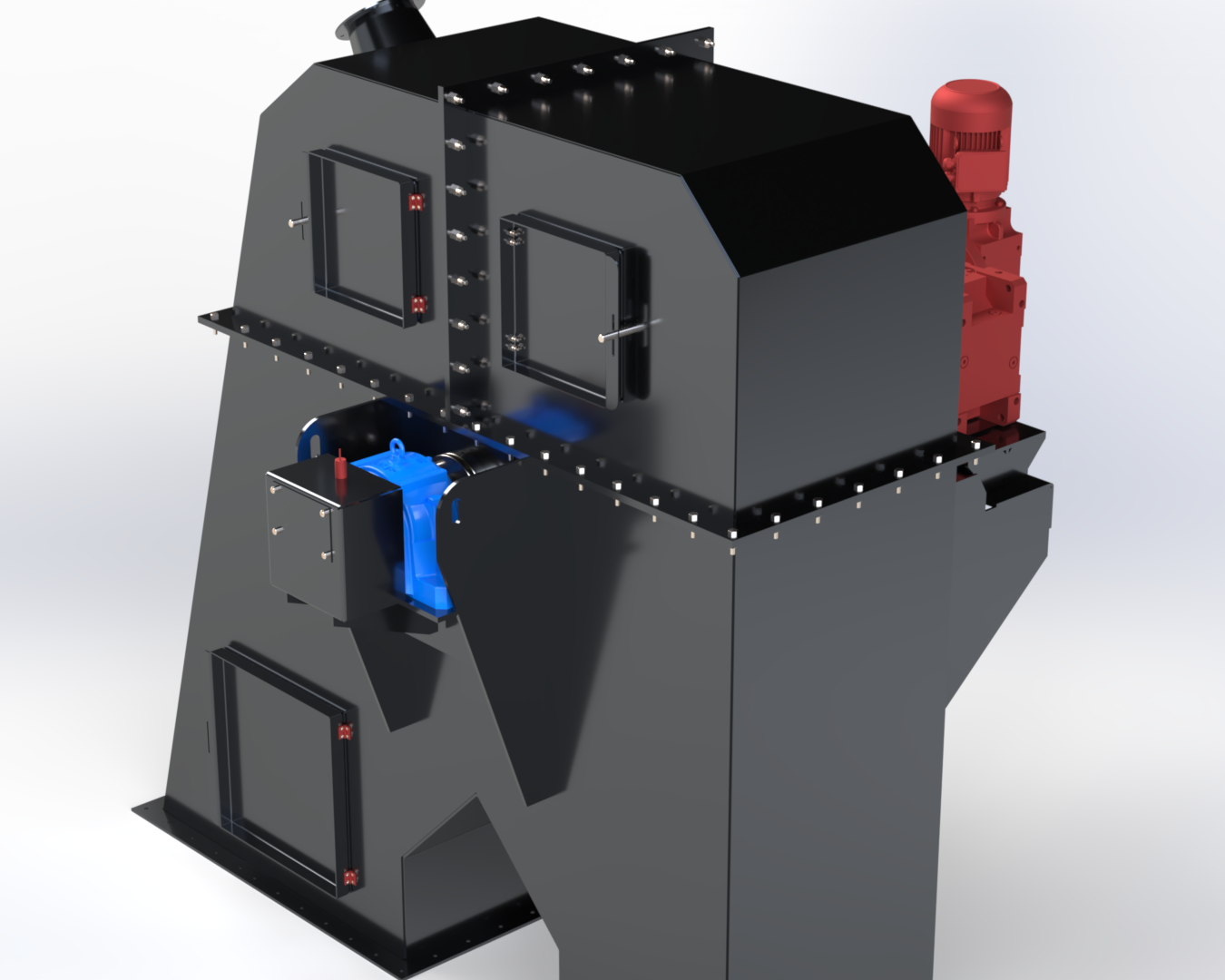

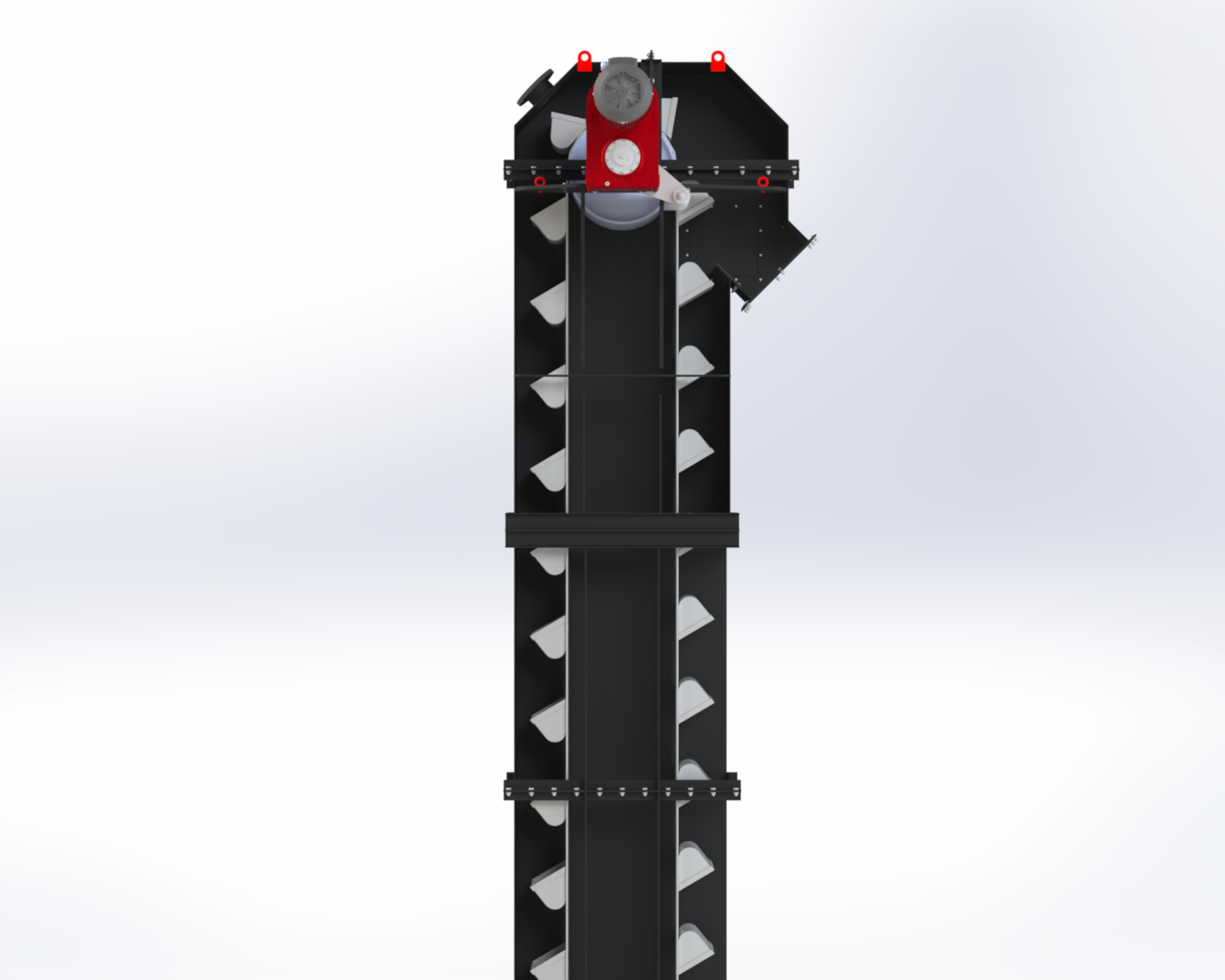

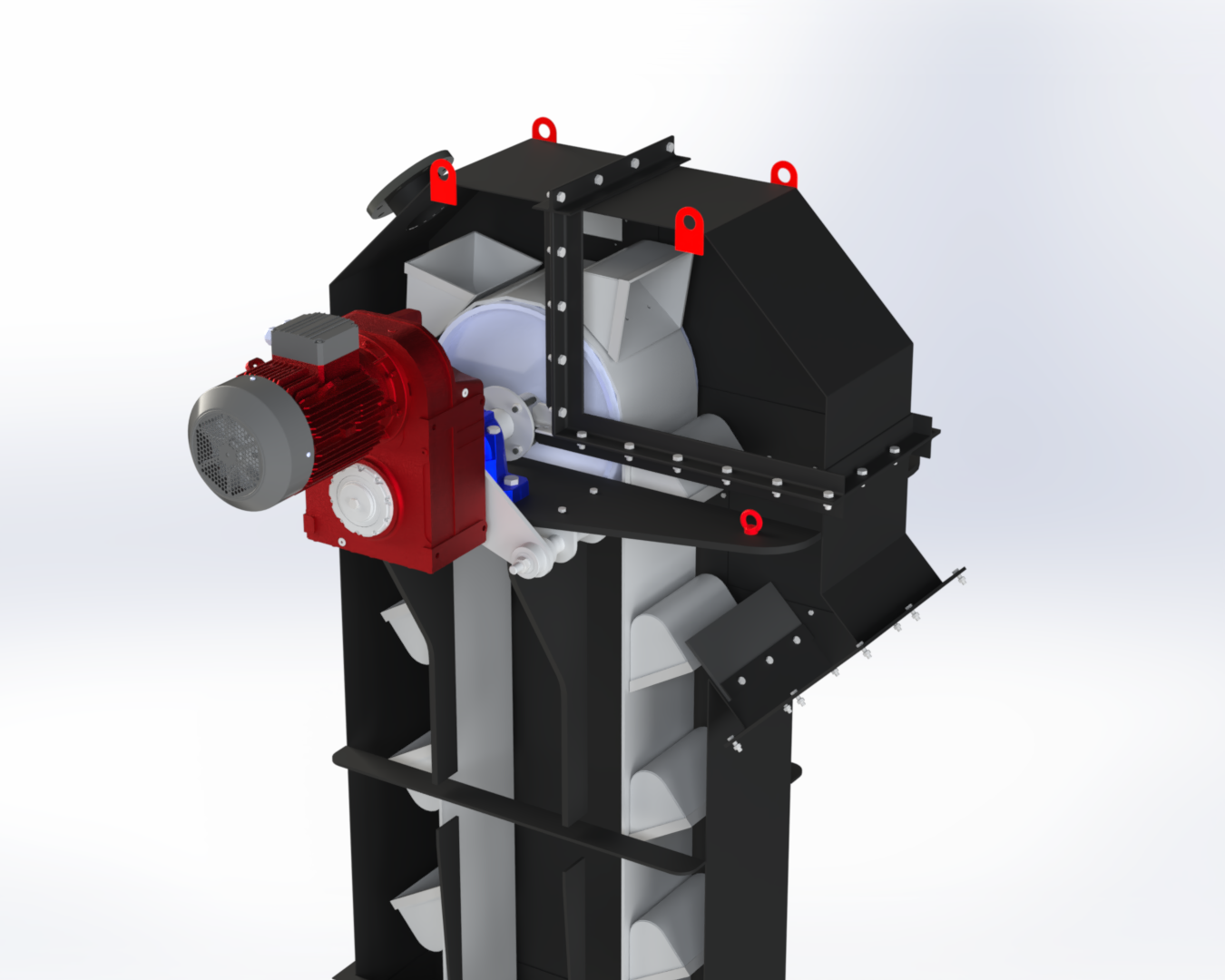

The fundamental working principle of a bucket elevator involves buckets mounted on a belt or chain that collect material at the bottom feeding point and transport it to the top discharge point. The carrier element, rotating over the bottom drive drum or sprocket, picks up material with buckets at the inlet. Material is transported upward within the enclosed housing and discharged at the top by centrifugal or gravity force. The enclosed housing structure provides complete sealing for dusty materials and prevents dust emissions.
Carrier Element Options
Bucket elevators offer three different carrier element options depending on operating conditions and capacity requirements. Belt-type bucket elevators are an economical choice for medium-capacity and low-abrasion materials. Single-strand chain elevators are suitable for medium-to-high capacity applications and are resistant to impact loads. Double-strand chain elevators are used in very high-capacity and heavy material conveying applications and can reach capacities of up to 500 tons per hour, making them the preferred choice for large-scale facilities.
Bucket Design and Material Selection
Bucket geometry is determined based on the flowability and density of the conveyed material. Sharp-bottom buckets are ideal for free-flowing and dry materials. Round-bottom buckets ensure complete discharge of sticky and moist materials. Deep buckets are used for large-volume and lightweight materials. Bucket materials include carbon steel, stainless steel, or high-density polyethylene options. Stainless steel buckets meet hygiene requirements in food and pharmaceutical sectors.
Capacity and Dimensional Parameters
Mastron bucket elevators are manufactured with capacities ranging from 10 to 500 tons per hour. Elevator height can be customized between 5 and 50 meters. Bucket capacity can be selected between 0.5 and 20 liters. Housing width and carrier element type are determined according to capacity requirements. Stainless steel or galvanized steel housing options can be optimized for the working environment.
Safety Systems
Work safety is critically important in bucket elevators. Overload sensors prevent motor overloading. Belt or chain break detectors automatically stop the system in sudden stop scenarios. Anti-rollback locking mechanisms prevent material from flowing back during power failures. Emergency stop systems can be easily activated from all access points. ATEX-certified components ensure safe operation in explosive dust environments.
Application Areas
Widely used in grain warehouses and flour mills for wheat, corn, and barley elevation; in cement plants for clinker and cement conveying; in fertilizer production facilities for granular fertilizer transport; in foundries for sand and additive material elevation; in mining for mineral concentrate conveying; in food sector for sugar, salt, and starch elevation. Coal and biomass conveying in power plants is also a major application area.
Efficiency and Investment Value
Provides 80% labor savings compared to manual handling. Energy efficiency is high with very low energy consumption per ton. Bucket elevators with low maintenance requirements need only 2 to 3 days of periodic maintenance per year. Return on investment is achieved in an average of 20 to 30 months. With proper use and regular maintenance, trouble-free service of over 20 years can be provided.
Contact Mastron engineering team for a bucket elevator solution suitable for your vertical conveying needs. Reach us for capacity calculation and technical consulting.
